COFFEE (Control Over FELIX For Early Emission) is an web application that is used to for start the warmup sequence for FELIX, either remotely or by timer.
The application can be found here: https://coffee.science.ru.nl

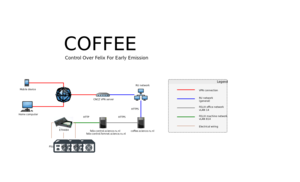

Technically, the application consists of:
- Domoticz running on felix-control
- ETH484-16, in the FTA
- An apache reverse-proxy server, on the CNCZ server coffee.science.ru.nl, forwarding requests to Domoticz. This server limits access to pc's on our networks, or the RU VPN subnet.
Documentation on the electronics is here.
Setup COFFEE
[edit | edit source]
- Go to https://coffee.science.ru.nl.

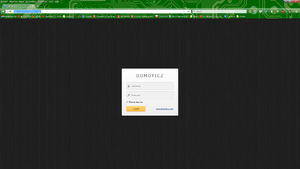

- Login with the well-known operator credentials (check 'Remember me' for convenience).

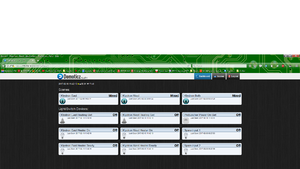

- Click on the scenes tab.
- Click on the Klystron Both timers button (should be purple).
- Click on the day you want it to turn on or either stay off.
- Click on the enabled dash
- As last step click on the "update" button (not on "add" button because it will add another entry and make OCD people go crazy)
more info for setting up VPN for COFFEE on android see the link below.
File:COFFEE.pdf
