Synchronization

Requirement: a trigger 3 ms prior to gun pin

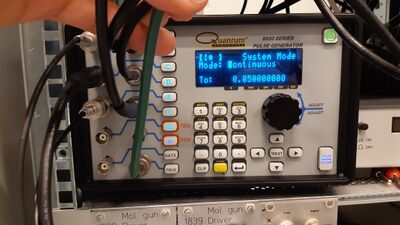

  1. Hook up to Trig input of QC9520 delay generator

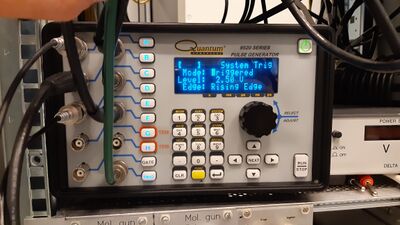

  2. Push Trig button; use dial to set Mode to triggered
  1. Push Func button, and then 1 (the mode selector); use dial to set Mode to single shot
  1. Push Run button
